Nor (Logic)
Menu Path : Operator > Logic > Nor
The Nor Operator takes two inputs and outputs the result of a logical nor operation between them. Nor is a composite operation that first calculates the not of the inputs and then calculates the or of the results. The result of A Nor B is true if either A or B is false. This operator is equivalent to the C# ! operator followed by the || operator.
Operator properties
| Input | Type | Description |
|---|---|---|
| A | bool | The left operand. If this is false then o is true. |
| B | bool | The right operand. If this is false then o is true. |
| Output | Type | Description |
|---|---|---|
| o | bool | If A or B is false, this value is true. Otherwise, if both A and B are true this value is false. |
Details

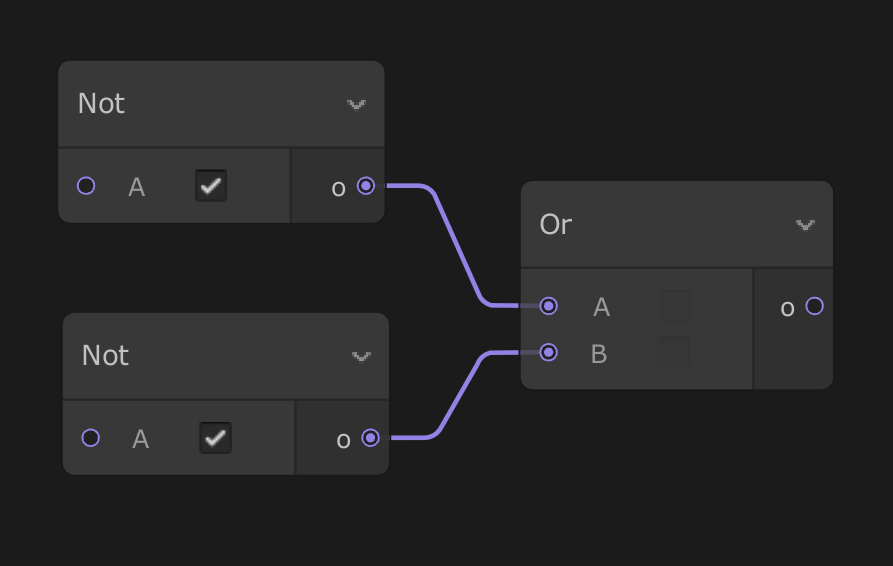

This Operator provides the same result as the following graph :
